Description
Features
Product Type |
NVMe SSD
|
|
---|---|---|
Storage Type |
Internal
|
|
Interface |
PCIe Gen 3.0 x 4, NVMe 1.3
|
|
Read/Write Speeds |
3,500/3,300 MB/s
|
|
Usage Application |
Client PCs
|
|
Series |

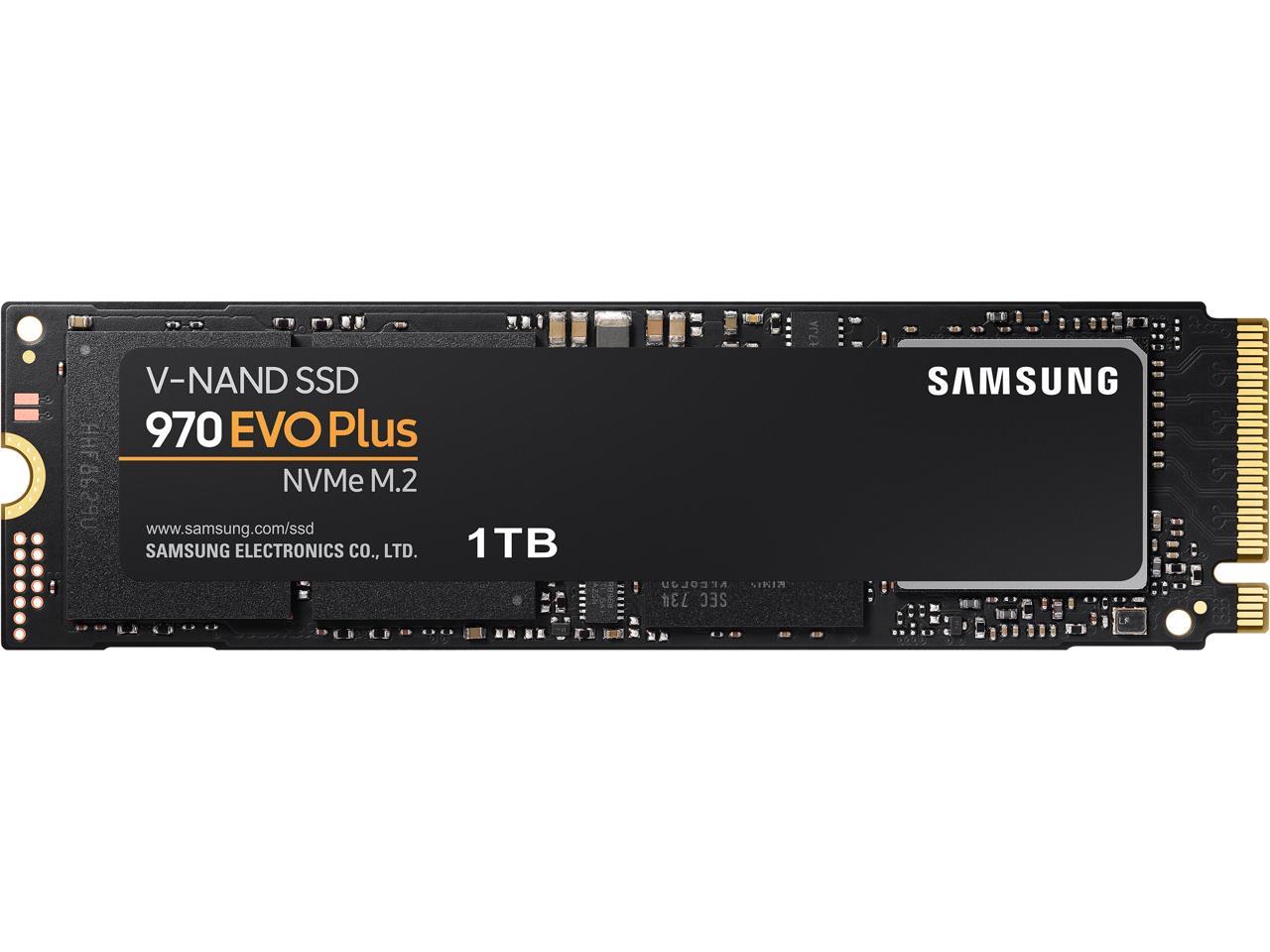

970 EVO Plus
|
|
Consumer |
Yes
|
|
---|---|---|
Capacity |
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
|
|
---|---|---|
Sequential Read Speed |
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
|
|
---|---|---|
Sequential Write Speed |
Up to 3,300 MB/s * Performance may vary based on system hardware & configuration
|
|
Random Read Speed |
Random Read (4KB, QD32): Up to 600,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
|
|
Random Write Speed |
Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
|
|
Controller |
In-house
|
|
NAND Flash |
Samsung V-NAND 3-bit MLC
|
|
Cache Memory |
Samsung 1GB Low Power DDR4 SDRAM
|
|
Trim Support |
Supported
|
|
AES Encryption |
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
|
|
Security |
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
|
|
S.M.A.R.T. Support |
Supported
|
|
GC (Garbage Collection) |
Auto Garbage Collection Algorithm
|
|
WWN Support |
Not supported
|
|
Device Sleep Mode Support |
Yes
|
|
Internal Storage |
Samsung V-NAND 3-bit MLC
|
|
Temperature proof |
Yes
|
|
NVMe |
Yes
|
|
Gaming SSDs |
Yes
|
|
Average Power Consumption (system level) |
* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
|
|
---|---|---|
Power consumption (Idle) |
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
|
|
Voltage |
3.3 V ± 5 % Allowable voltage
|
|
Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF)
|
|
Operating Temperature |
0 – 70 ℃ Operating Temperature
|
|
---|---|---|
Shock |
1,500 G & 0.5 ms (Half sine)
|
|
Product |
M.2 (2280)
|
|
---|---|---|
Product |
3.16″ x 0.87″ x 0.09″
|
|
---|---|---|
Product |
0.3 oz.
|
|
---|---|---|
Management SW |
Magician Software for SSD management
|
|
---|---|---|
Product |
5-Year Limited Warranty or: 600 TBW Limited Warranty
|
---|
