Description
- THE SSD ALL-STAR: The latest 870 EVO has indisputable performance, reliability and compatibility built upon Samsung’s pioneering technology
- EXCELLENCE IN PERFORMANCE: Enjoy professional level SSD performance with 870 EVO, which maximizes the SATA interface limit to 560/530 MB/s sequential speeds, accelerates write speeds and maintains long term high performance with a larger variable buffer
- INDUSTRY DEFINING RELIABILITY: Meet the demands of every task from everyday computing to 8K video processing, with up to 2,400 TBW
- MORE COMPATIBLE THAN EVER: 870 EVO has been compatibility tested for major host systems and applications, including chipsets, motherboards, NAS, and video recording devices
- UPGRADE WITH EASE: Simply plug 870 EVO into the standard 2.5 inch SATA form factor on your desktop PC or laptop and let the renewed migration software takes care of the rest
Features
Specification
Collapse group heading |
---|
General Feature
|
||
---|---|---|
Product Type |

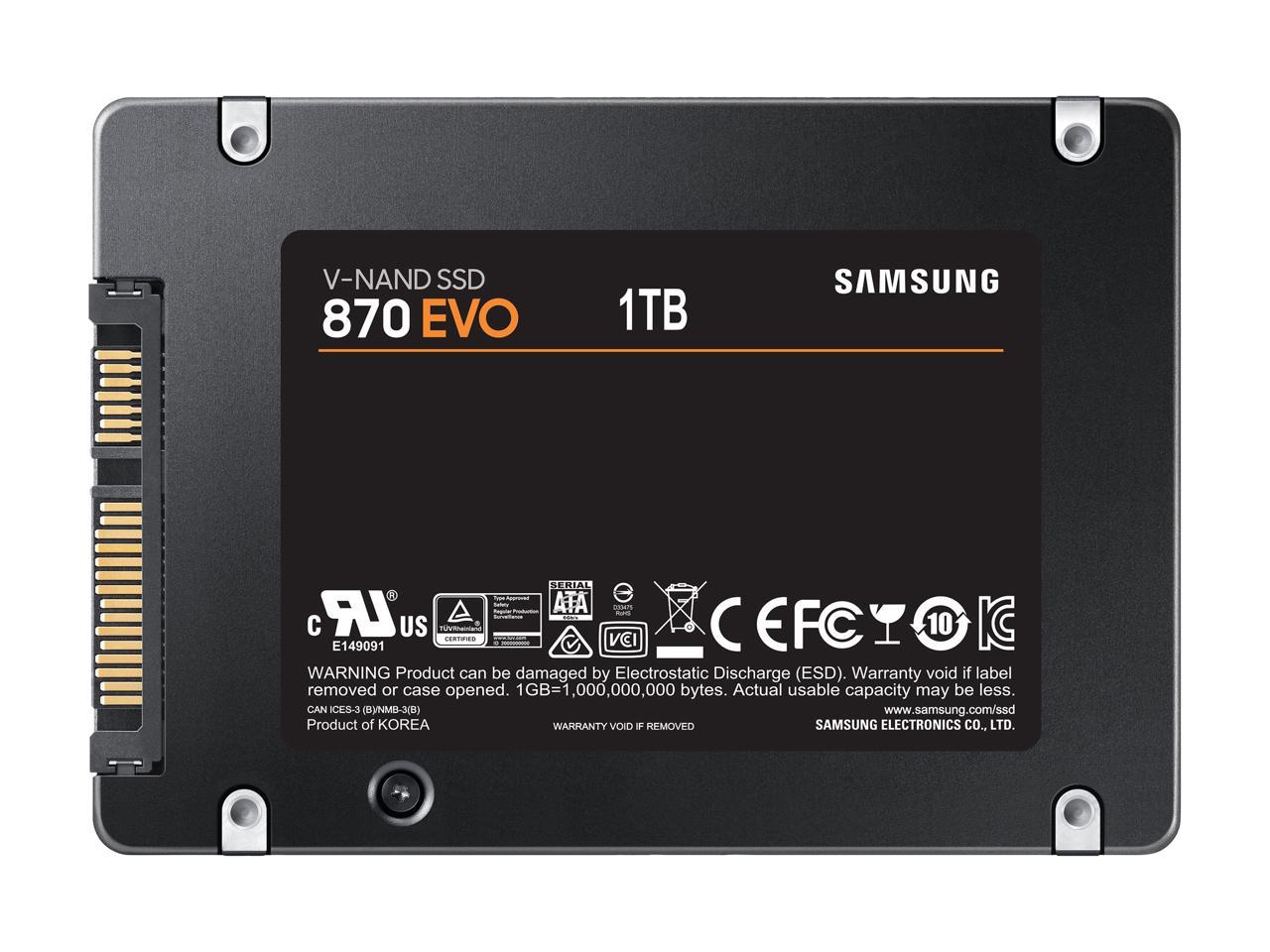

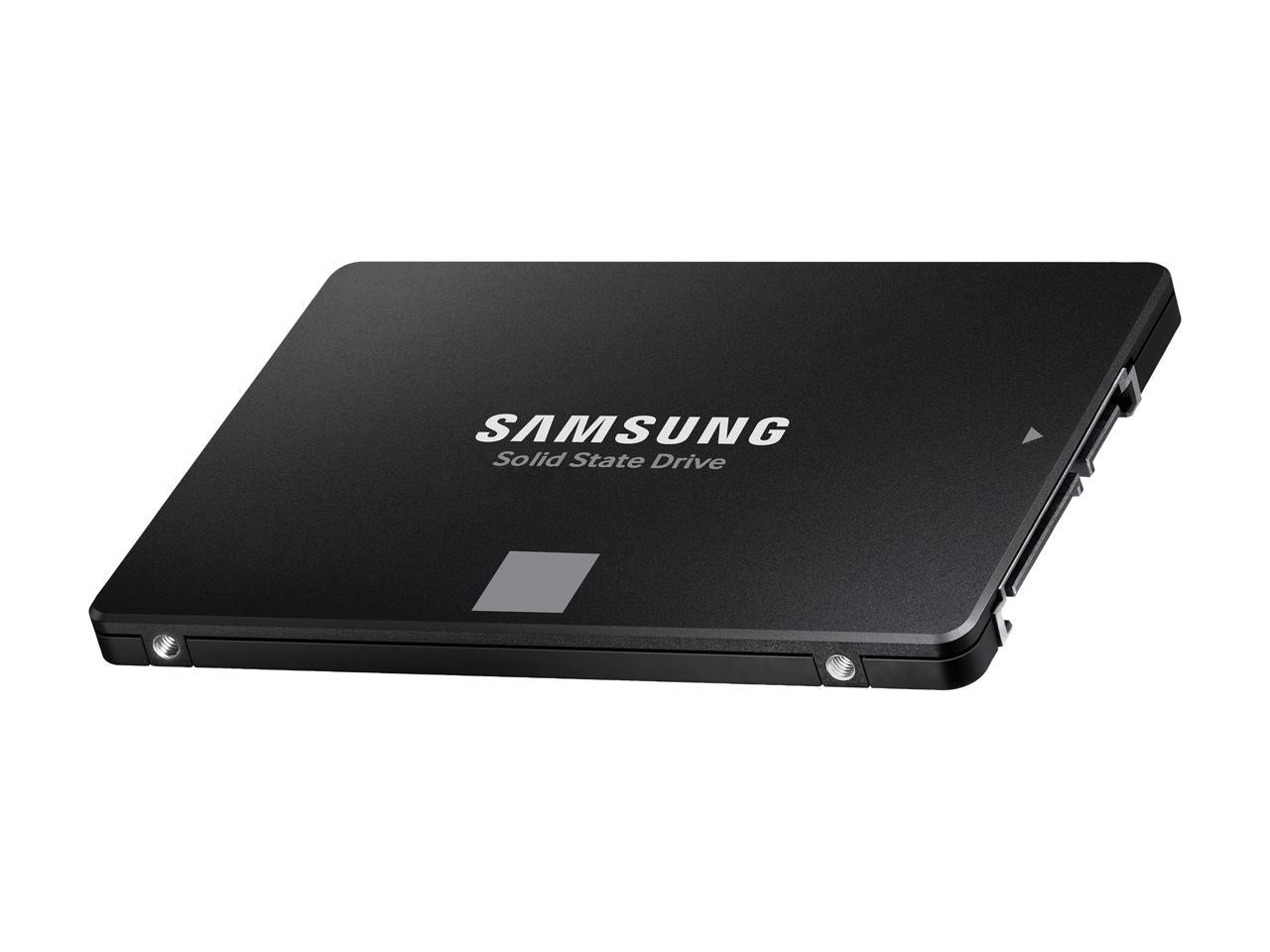

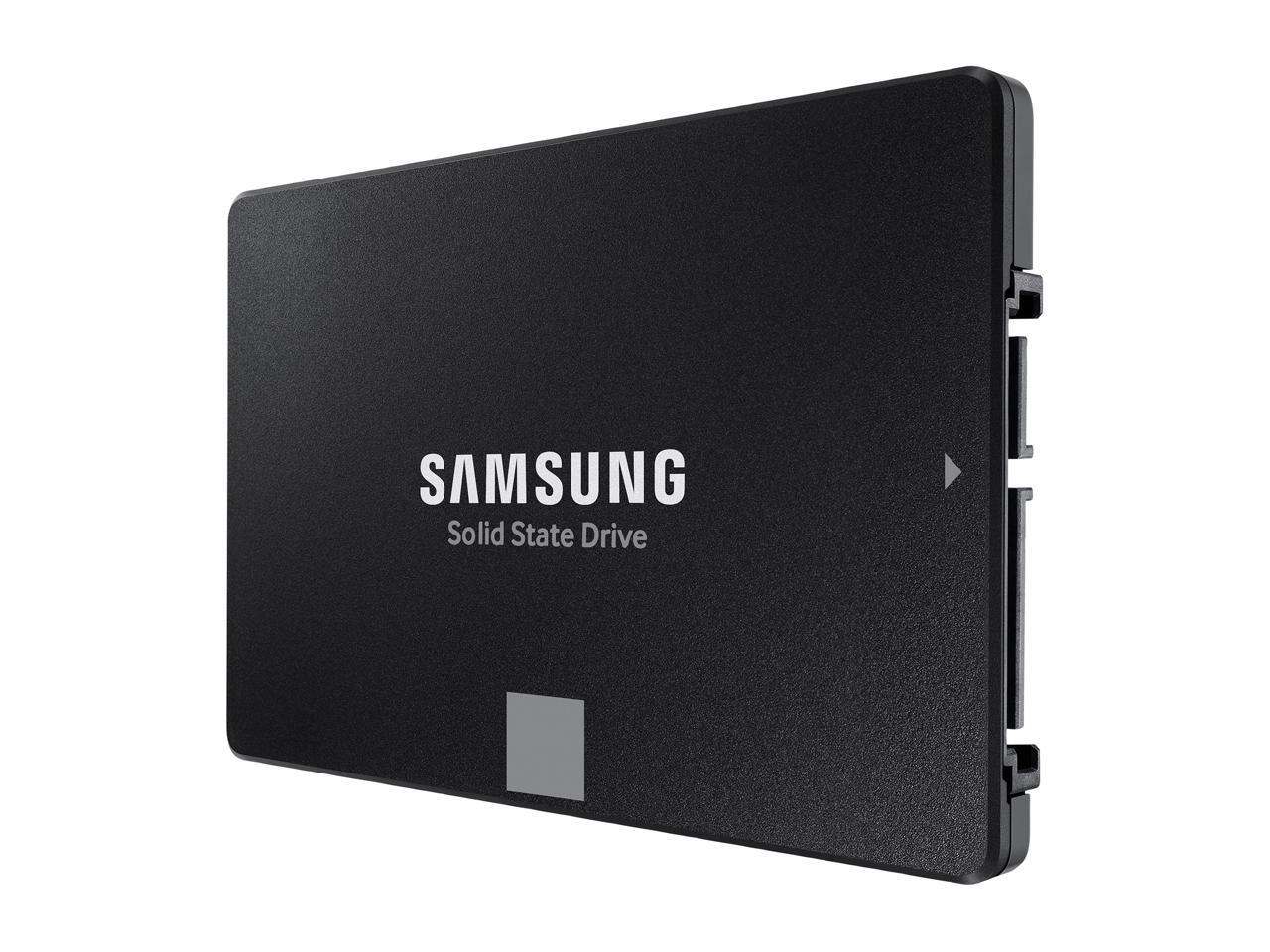

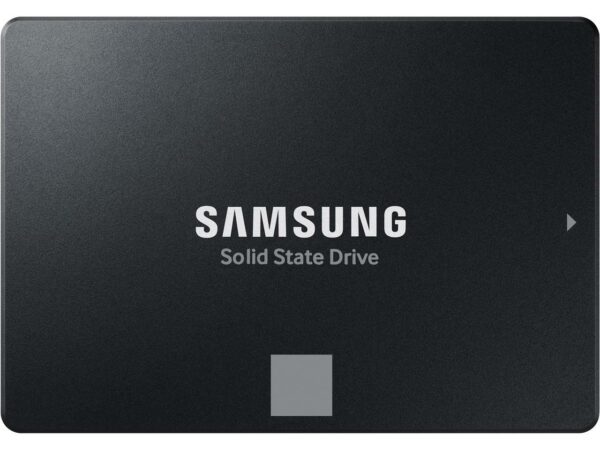

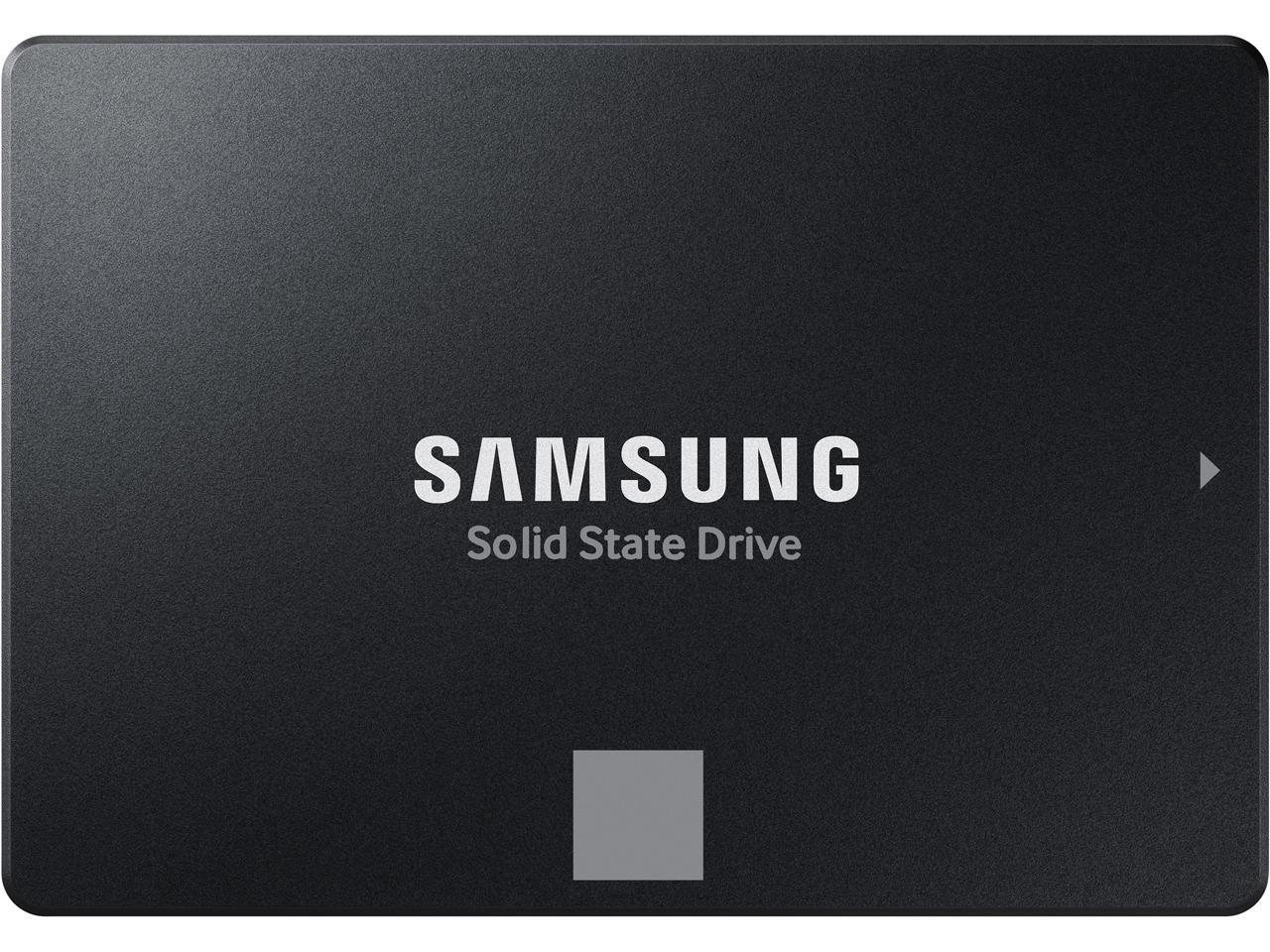

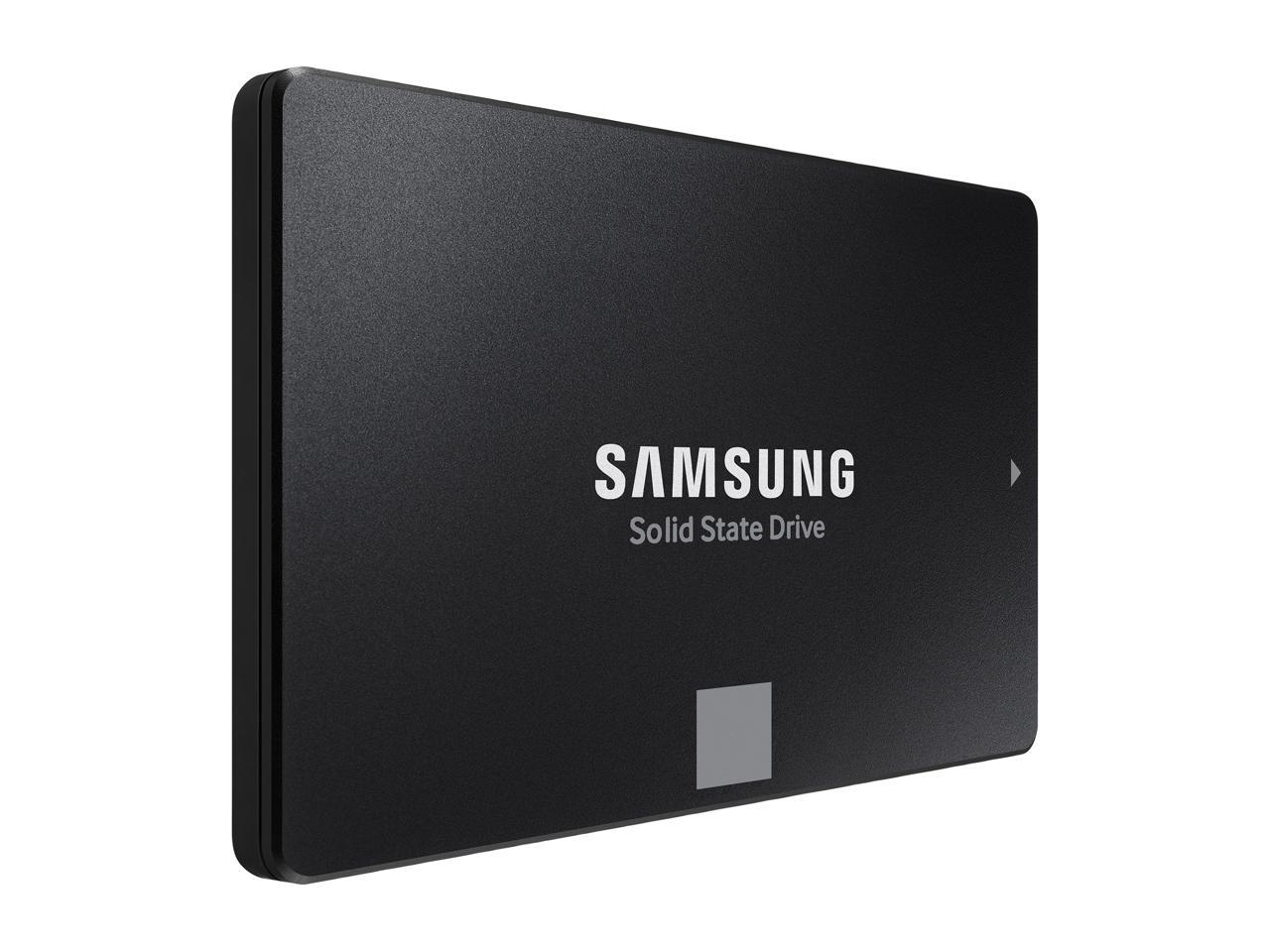

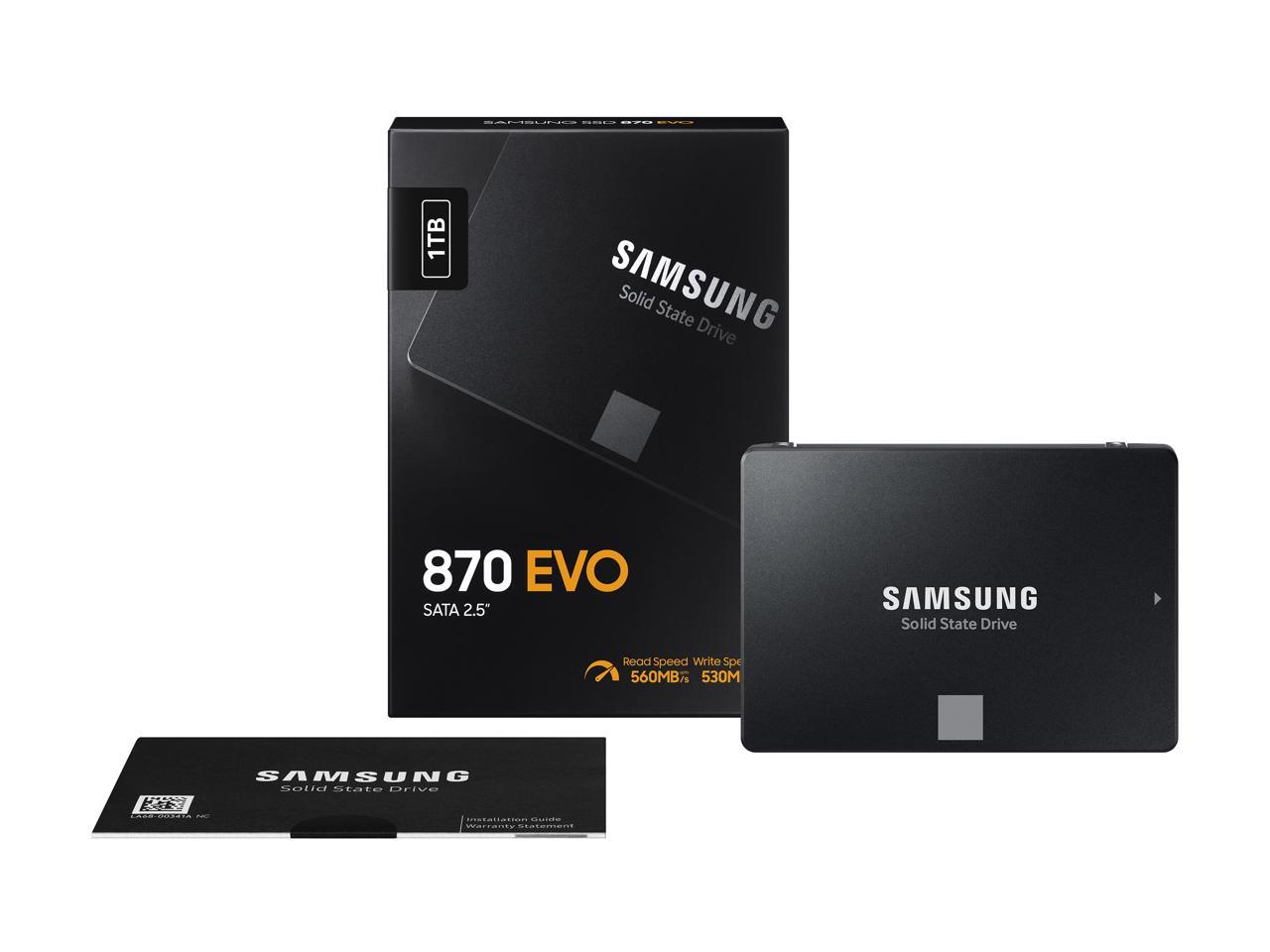

870 EVO SATA 2.5″ SSD 1TB
|
|
Family Line |
870 EVO SATA 2.5″ SSD
|
|
Capacity |
1TB
|
|
Interface |
SATA 6 Gbps Interface
|
|
Compatibility |
Windows10/Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux
|
|
Dimension (WxHxD) |
3.94″ X 2.75 ” X 0.27″
|
|
Weight |
0.19 lbs.
|
|
Collapse group heading |
Performance
|
||
---|---|---|
Speed |
Read/write speeds of up to 560/530 MB/s
|
|
Encryption |
Class 0 (AES 256) TCG/Opal v2.0, MS eDrive (IEEE1667)
|
|
Collapse group heading |
Type
|
||
---|---|---|
Interface |
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
|
|
Usage Application |
Client PCs
|
|
Collapse group heading |
Storage
|
||
---|---|---|
Capacity |
1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
|
|
Collapse group heading |
Key Features
|
||
---|---|---|
Sequential Read Speed |
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
|
|
Sequential Write Speed |
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
|
|
Cache Memory |
Samsung 1 GB Low Power DDR4 SDRAM
|
|
Trim Support |
TRIM Supported
|
|
S.M.A.R.T. Support |
S.M.A.R.T Supported
|
|
GC (Garbage Collection) |
Auto Garbage Collection Algorithm
|
|
WWN Support |
World Wide Name supported
|
|
Device Sleep Mode Support |
Yes
|
|
Internal Storage |
Samsung V-NAND 3bit MLC
|
|
Collapse group heading |
General
|
||
---|---|---|
Average Power Consumption (system level) |
Average: 2.5 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
|
|
Power consumption (Idle) |
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
|
|
Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF)
|
|
Collapse group heading |
Environmental Specs
|
||
---|---|---|
Shock |
1,500 G & 0.5 ms (Half sine)
|
|
Collapse group heading |
Form Factor
|
||
---|---|---|
Product |
2.5 inch
|
|
Collapse group heading |
- 1 Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology.
- 2 Test system configuration: Intel Core i7-7700K CPU @ 4.20GHz, DDR4 1200MHz 32GB, OS – Windows 10 Pro x64, Chipset: ASUS PRIME Z270-A. All performance data was measured with the SSD as a secondary.
- 3 Warrantied TBW (terabytes written) for 870 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model.
- 4 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
- 5 Compatibility tests conducted with Samsung internal, AMD, MSI, Gigabyte, Synology, QNAP, BlackMagicDesign and ATMOS.
- 6 Compatibility tests conducted with Samsung internal, AMD, MSI, Gigabyte, Synology, QNAP, BlackMagicDesign and ATMOS.
- 7 Source: 2003-2019 IHS Markit data: NAND suppliers’ revenue market share.
