Description

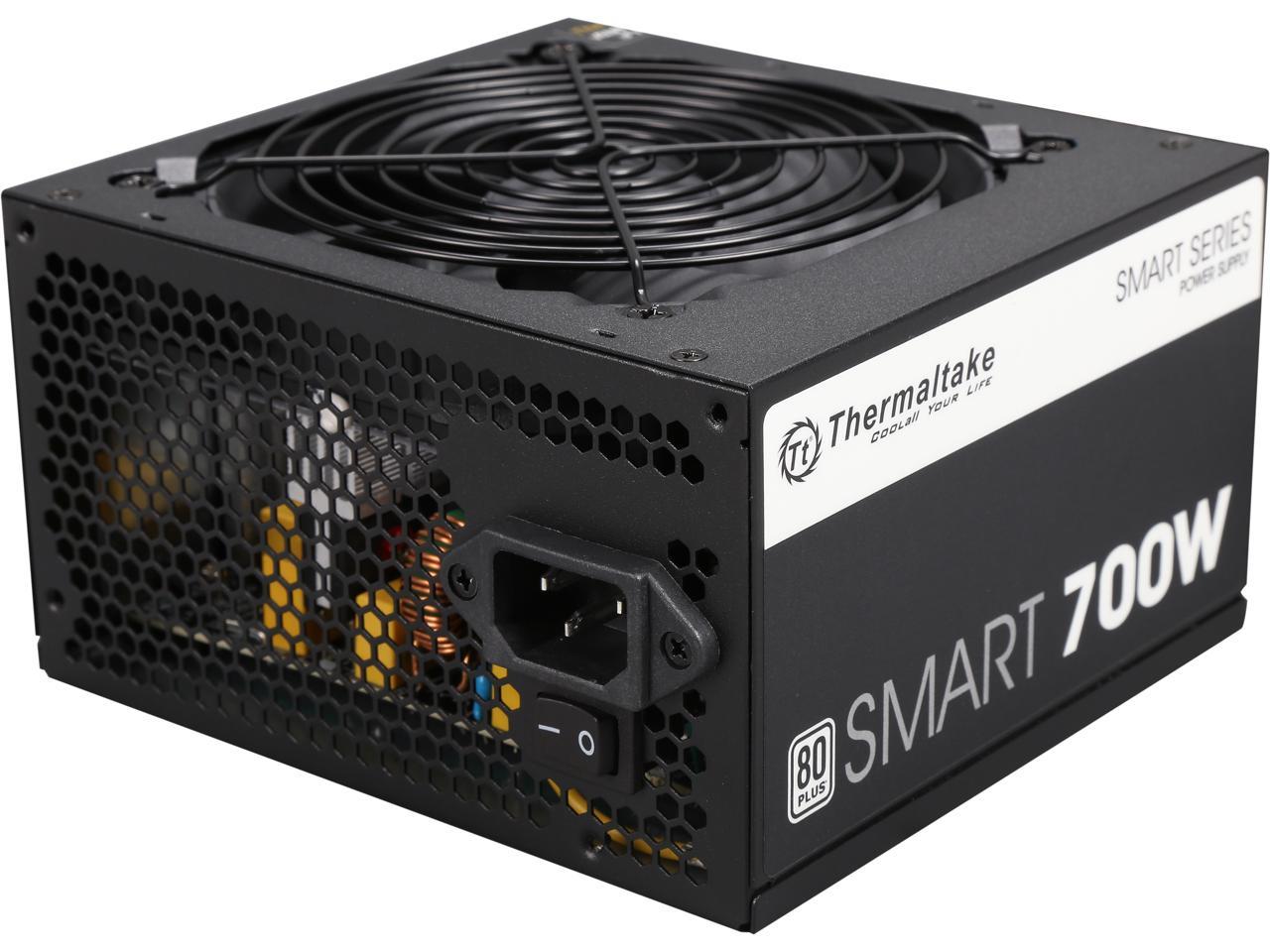

Thermaltake Smart 700W
Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
![Thermaltake](https://c1.neweggimages.com/BizIntell/item/17/153/17-153-231/a1_021516.jpg)

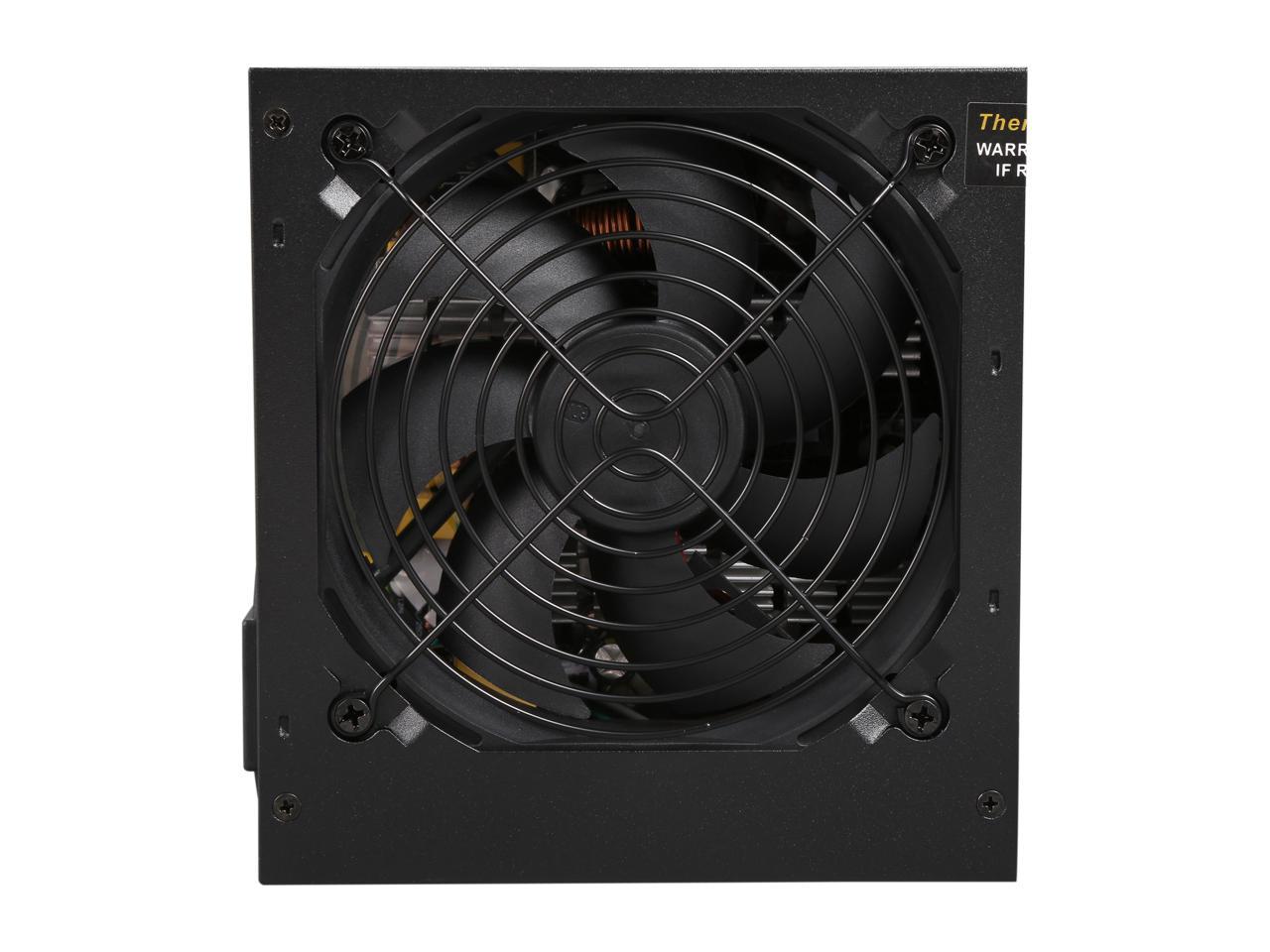

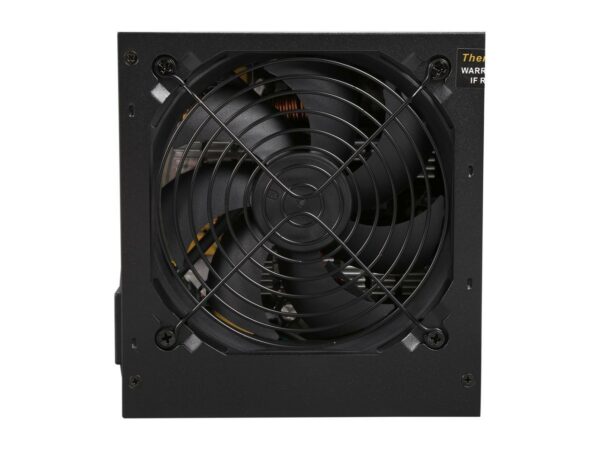

120mm Ultra Quiet Fan
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
![Thermaltake](https://c1.neweggimages.com/BizIntell/item/17/153/17-153-231/a2_021516.jpg)

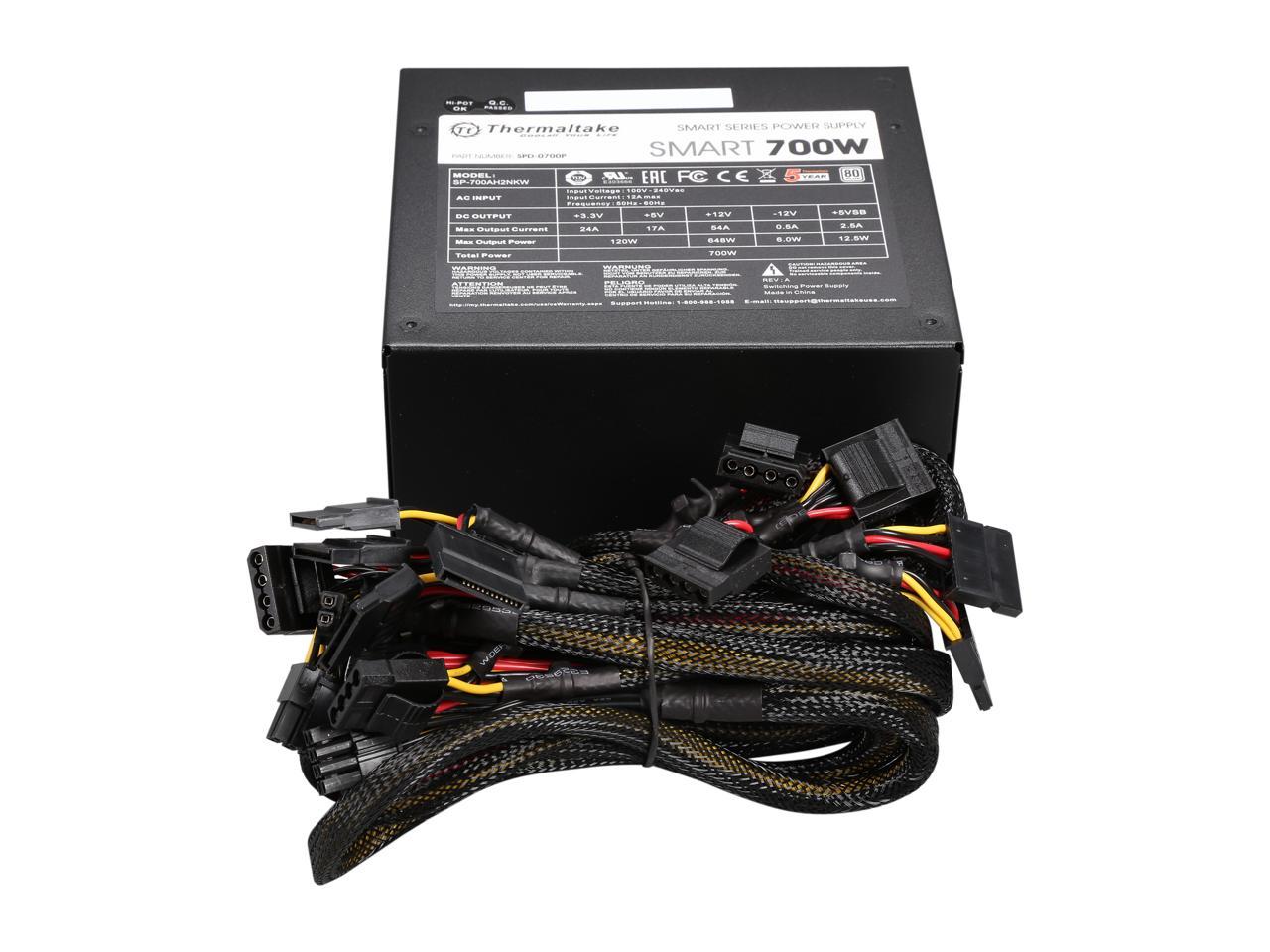

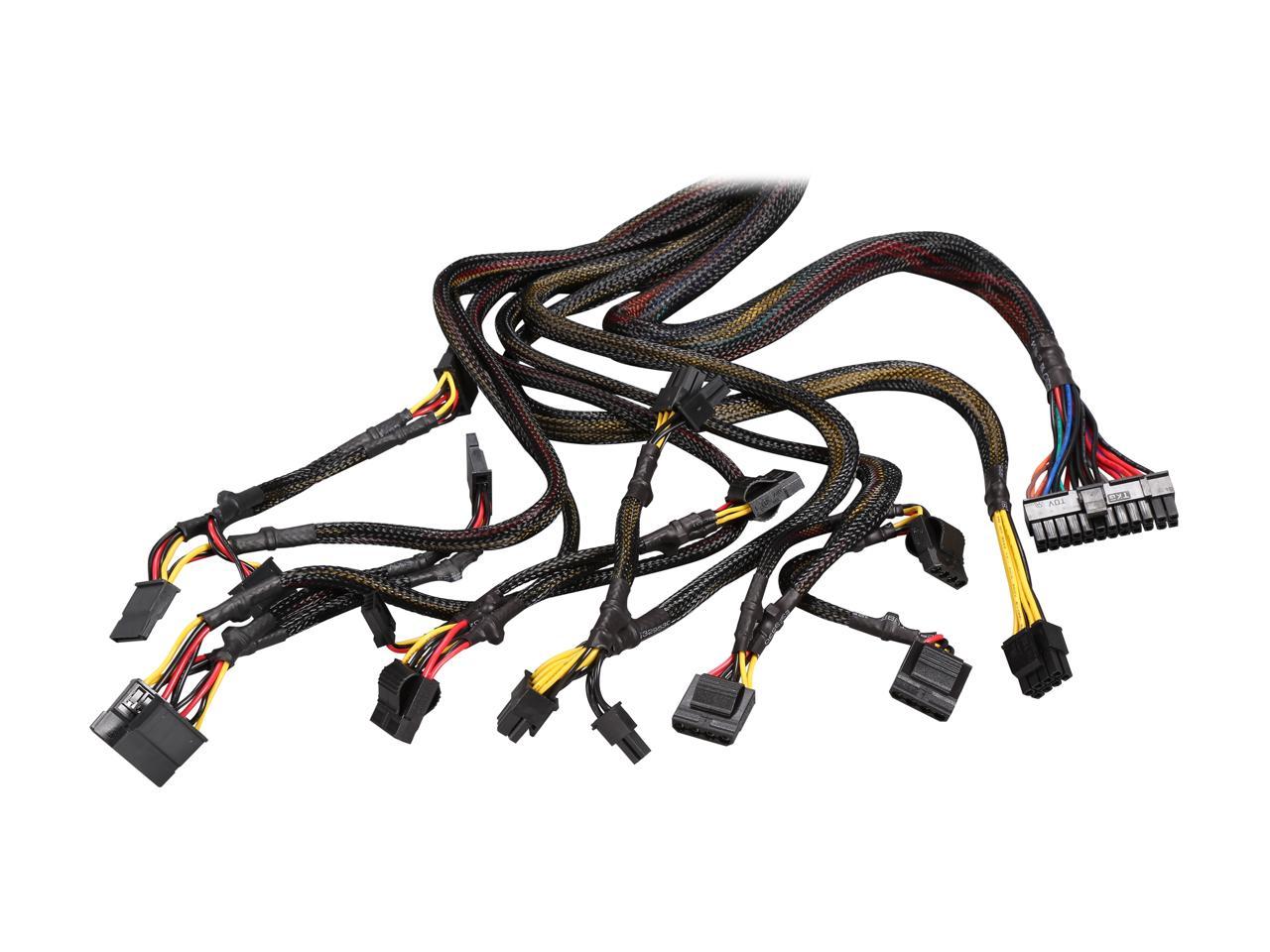

Multiple Connectors
Smart 700W connector’s specification as below:
![Thermaltake](https://c1.neweggimages.com/BizIntell/item/17/153/17-153-231/a3_021516.jpg)
MODEL / CABLE | ![]() Main Power Connector (20+4Pin) |
![]() ATX 12V (4+4Pin) |
![]() Peripheral (4Pin) |
![]() SATA (5Pin) |
![]() PCI-E (6+2Pin) |
![]() Floppy (4Pin) |
---|---|---|---|---|---|---|
SMART 700W | 1 | 1 | 5 | 6 | 2 | 1 |
80 PLUS Standard Certified and Haswell Ready
Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
![Thermaltake](https://c1.neweggimages.com/BizIntell/item/17/153/17-153-231/a4_021516.jpg)
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
![Thermaltake](https://c1.neweggimages.com/BizIntell/item/17/153/17-153-231/a5_021516.jpg)

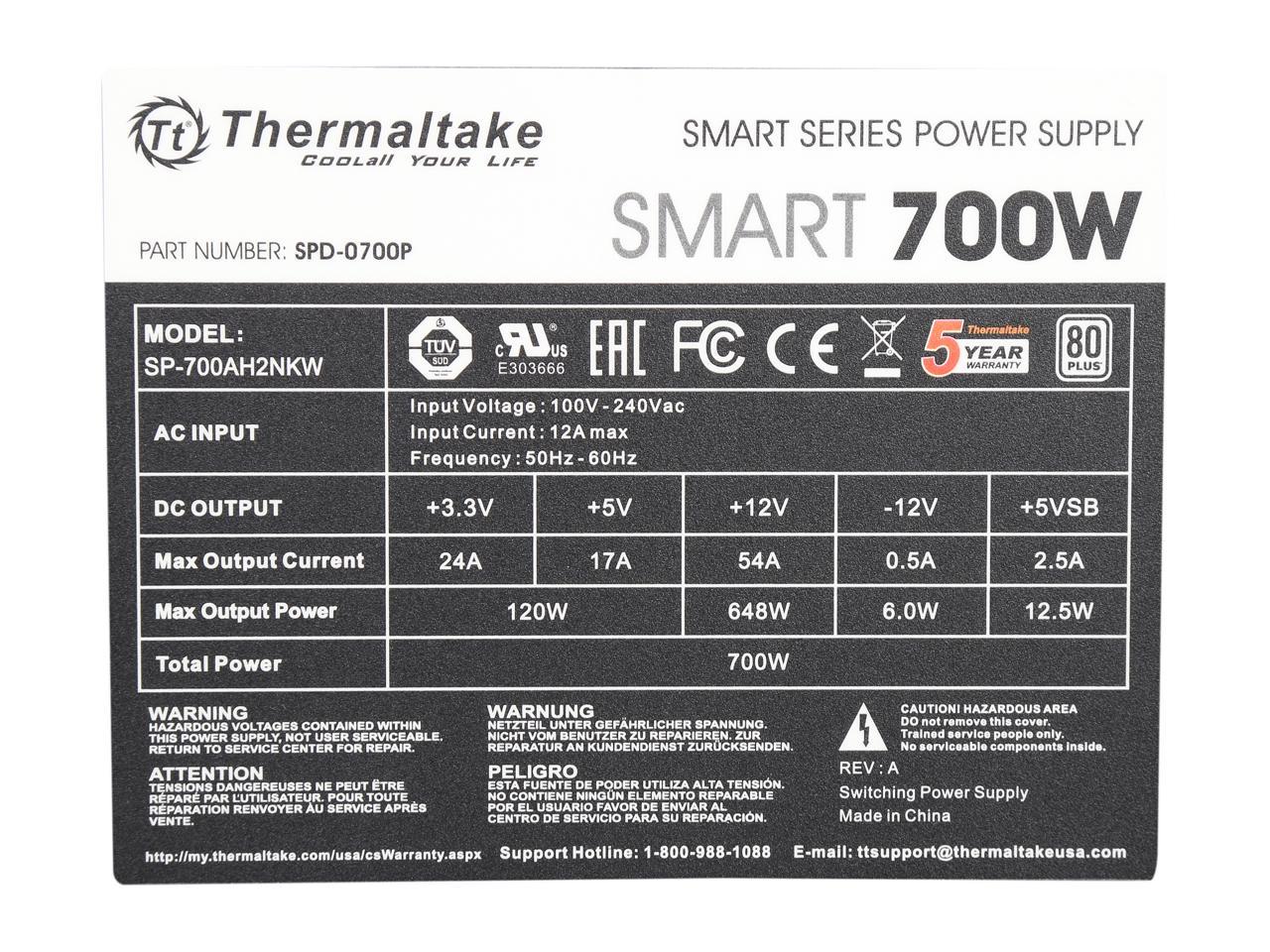

Single +12V Output
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
![Thermaltake](https://c1.neweggimages.com/BizIntell/item/17/153/17-153-231/a6_021516.jpg)
Specification
P/N | PS-SPD-0700NPCW-W |
---|---|
Short P/N | SPD-0700P |
Model | SP-700AH2NKW |
Type | Intel ATX 12V 2.3 |
Max. Output Capacity | 700W |
Color | Black |

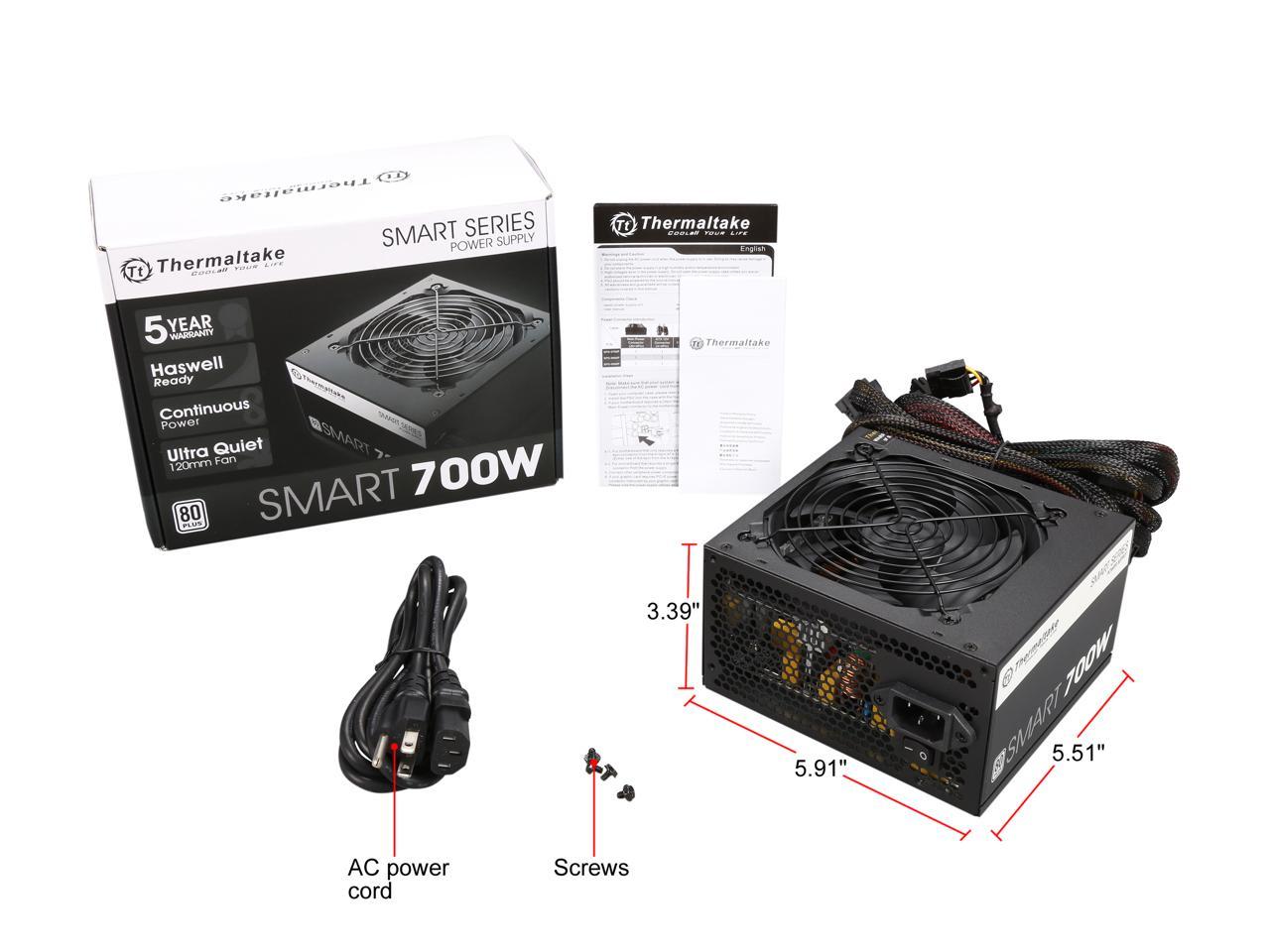

Dimension (H x W x D) | 86mm x 150mm x 140mm |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-500 msec |
Hold Up Time | 16msec (minimum) within 60% load |
Input current | 12A max |
Input Frequency Range | 50 Hz – 60 Hz |
Input Voltage | 100Vac – 240Vac |
Operating Temperature | 5? to +40? |
Operating Humidity | 20% to 85%,non-condensing |
Operating Temperature | -40 ? to +55 ? |
Operating Humidity | 10% to 95%, non-condensing |
Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
Efficiency | 82-86% efficiency @ 20-100% load |
MTBF | 100,000 hrs minimum |
Safety Approval | CE/CB/TUV/ UL/ FCC |
PCI-E Connector | PCI-E 6+2pin x 2 |
